Cast Iron Hand Pump

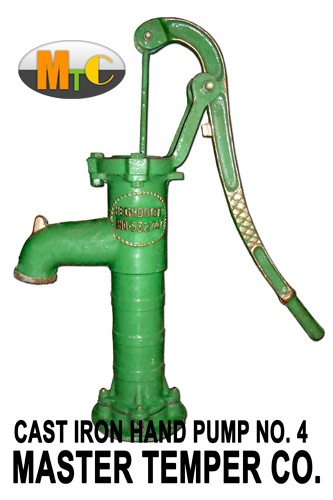

Hand Pump No 4

This hand pumps suction water from 20 to 25 feet from ground level. It is equipped with 76.2mm washer which helps to suck water easily. Hand Pump is made from Cast Iron for long lasting life.

Water Hand Pump is equipped with flat washer with weight for water storage in body. Water hand pump is also equipped with Piston Rode with Inner Flower, Head Flange, Base Flange & Handle.

Specification

Height Without Handle 20" (20 Inches)
Height With Handle 24" (24 Inches)
Weight 12 Kg. Approx
Material Used Cast Iron
Cup Seal (Bracket Washer Size) 3" (3 Inches)
Suction Capacity 20 to 25 Feets
Pipe Fitting Size 1" (31.75 mm)
Color/Paint Dark Green or Blue Standard Paints
Packing Corrugated Box Packing
Maximum Discharge Water 2400 Liters Per Hour on Per Second/Stroke basis



Hand Pump No 6

This hand pumps suction water from 20 to 25 feet from ground level. It is equipped with 88.9mm washer which helps to suck water easily. Hand Pump is made from Cast Iron for long lasting life.

Heavy Water Hand Pump is equipped with flat washer with weight for water storage in body. Water hand pump is also equipped with Piston Rode with Inner Flower, Head Flange, Base Flange & Handle.

Specification

Height Without Handle 26" (26 Inches)
Height With Handle 29" (29 Inches)
Weight 16.7Kg. Approx
Material Used Cast Iron
Cup Seal (Bracket Washer Size) 3" (3.5 Inches)
Suction Capacity 20 to 25 Feets
Pipe Fitting Size 1" ( 38.10 mm)
Color/Paint Dark Green or Blue Standard Paints
Packing Corrugated Box Packing
Maximum Discharge Water 3000 Liters Per Hour on Per Second/Stroke basis
